230 Hours

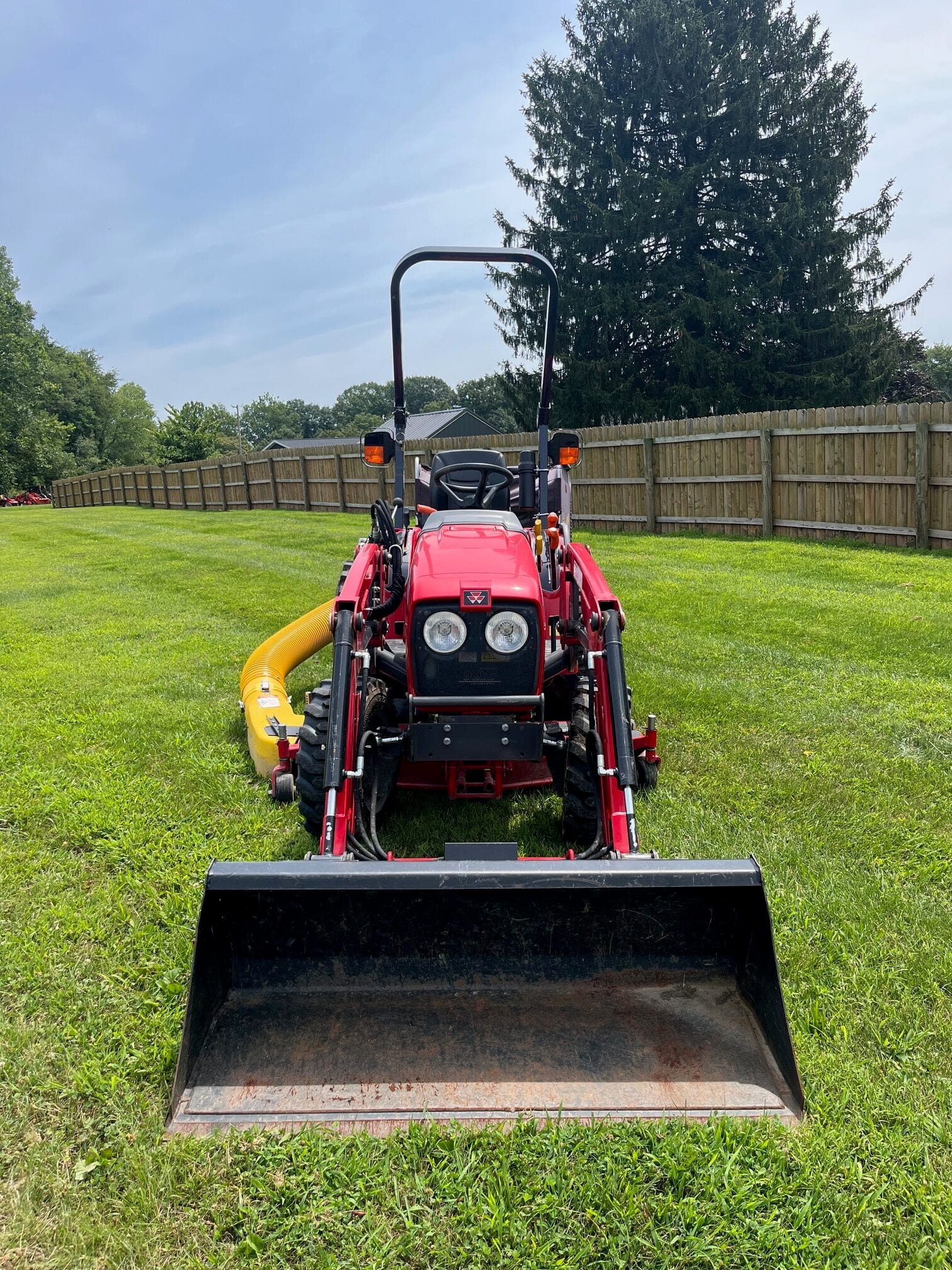

The Massey Ferguson 1526 is a compact tractor with a 24.8 HP, 3-cylinder diesel engine, and a 20.1 HP PTO. It features a 3-range hydrostatic transmission, 4-wheel drive, and an independent 540 RPM rear PTO with optional 2000 RPM mid PTO. The open-center hydraulic system provides 5.5 GPM flow to remotes and 3.2 GPM for power steering, totaling 8.7 GPM. The tractor offers features like electronic PTO engagement, auto-throttle, cruise control, and a quick-attach loader with skid steer compatibility.
Engine & Drivetrain
- Engine: 3-cylinder, liquid-cooled diesel engine
- Rated Engine Power: 24.8 HP (18.5 kW) @ 2,600 RPM
- PTO Power: 20.1 HP (15 kW)
- Displacement: 91.4 cubic inches (1.5 L)
- Transmission: 3-range hydrostatic with cruise control
- Drive: 4-wheel drive
Hydraulics & PTO
- System Type: Open-center
- Flow to Remotes: 5.5 GPM (20.9 L/min)
- Power Steering Flow: 3.2 GPM (12.3 L/min)
- Total Flow: 8.7 GPM (33.2 L/min)
- Rear PTO: Independent 540 RPM with electrohydraulic control
- Mid PTO: Optional 2000 RPM independent PTO
Operator Features
- Controls: Easy-to-access controls with an instrument panel
- Hydrostatic Transmission: Side-by-side pedals for forward and reverse, with cruise control and auto-throttle
- Hitch: Standard 3-point hitch with rate-of-drop control
- Loader: Standard skid steer quick-attach system with a joystick for control
- Other Features: Foldable ROPS, parking brake, headlights, turn signals, and hazard lights
Dimensions & Weight (Approximate)
- Overall Length: ~111 inches
- Ground Clearance: ~11.6 inches
- Height to Top of ROPS: ~96.1 inches
- Base Weight: ~2,077 lbs
